The Wooting 80HE already sits at the top of the gaming keyboard world thanks to its Hall Effect switches, adjustable actuation, and rapid trigger technology. It’s one of the few keyboards where the hardware and software actually work together to give competitive players measurable control over movement and inputs.

But the Wooting 80HE TenZ Edition is not just a cosmetic variant.

This version was designed in collaboration with Valorant pro player Tyson “TenZ” Ngo, and it represents a very specific philosophy:

Competitive gaming performance first. Everything else second.

That philosophy shows up in the switch design, plate material, and tuning choices.

And those differences are exactly what we’re going to break down.

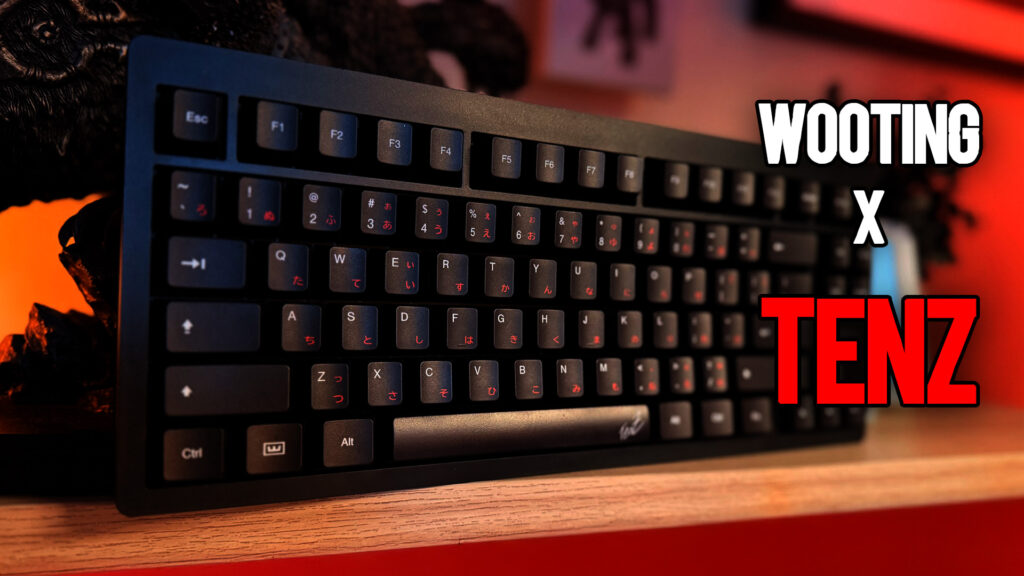

Wooting 80HE TenZ Edition Specifications

Keyboard Layout
80% (TKL style with function row)

Switch Type
Hall Effect Magnetic Switch

Switch Model
TenZ Magnetic Switch (custom Lekker variant)

Switch Travel
4.0 mm total travel

Adjustable Actuation
0.1 mm – 4.0 mm

Rapid Trigger
Yes

Plate Material
FR4 Plate

Polling Rate
1000 Hz

Scan Rate
Up to 8000 Hz internal scanning

Connection
Wired USB-C

Case Material
Plastic TenZ Special Edition Case

Keycaps
Custom PBT TenZ Keycaps with Japanese Sublegends

RGB
Per-key RGB (north-facing LEDs)

Software
Wootility Web App

Operating Systems
Windows / Mac / Linux (via browser configuration)

Weight
Approximately 1.2 kg depending on configuration

Price
$220 (TenZ Edition)

The TenZ Magnetic Switches

The biggest difference between the TenZ version and the normal Wooting 80HE is the custom TenZ switches.

These switches are based on Wooting’s Lekker Hall Effect technology, but tuned specifically for TenZ’s preferences.

TenZ Switch Characteristics

• Lighter actuation force
• Longer 4mm total travel
• Magnetic sensing instead of physical contact

Because these switches use Hall Effect sensors, they do not rely on metal contact points like traditional mechanical switches.

Instead, the keyboard measures the exact position of the key using magnetic sensors.

This allows Wooting to provide features like:

• Adjustable actuation
• Rapid Trigger reset
• Per-key sensitivity control

This is the technology that has made Wooting keyboards dominate competitive FPS gaming.

Rapid Trigger and Adjustable Actuation

This is where Wooting completely separates itself from traditional mechanical keyboards.

On a normal keyboard, a key must return to its reset point before it can register again.

With Rapid Trigger, the key resets the moment you release pressure.

That means:

You can strafe left and right faster than traditional keyboards allow.

For competitive games like:

• Valorant
• Counter-Strike
• Apex Legends
• Overwatch

This can provide a real mechanical advantage in movement control.

TenZ himself runs extremely aggressive actuation settings:

1.0 mm actuation with 0.4 mm rapid trigger reset.

For most people, that is almost unusably sensitive.

But for a professional FPS player, it allows extremely fast directional inputs.

The FR4 Plate

Another key difference with the TenZ edition is the FR4 plate.

FR4 is a fiberglass composite material commonly used in circuit boards.

Compared to aluminum or polycarbonate plates, FR4 tends to be:

• Stiffer than polycarbonate
• Less flexible for typing bounce
• More consistent for gaming inputs

For typing enthusiasts, softer plates often feel better.

But for competitive gaming, stiffness can actually be an advantage because it reduces key flex and keeps inputs consistent.

That makes sense for a TenZ collaboration.

This keyboard was clearly designed around precision inputs rather than typing comfort.

The TenZ Case Design

The TenZ edition uses a special black plastic case with frosted accents designed to show off RGB lighting.

The concept is interesting.

The execution is a little mixed.

The frosted sections allow some RGB to shine through, but the brightness simply isn’t strong enough to really create the glowing effect the case design suggests.

Compared to Wooting’s Ghost Case, which shows RGB much more dramatically, the TenZ case ends up looking relatively subdued.

The aesthetic is clean.

But the lighting potential feels slightly underutilized.

Keycaps

The TenZ edition ships with custom PBT keycaps designed specifically for this collaboration.

Keycap Features

• Thick PBT construction
• Japanese sublegend styling
• Red accent legends
• Non-shine-through design

Because the legends are not translucent, the RGB lighting doesn’t shine through the keycaps.

But this improves the typing sound and overall acoustics, which is why many enthusiasts prefer non-shine-through keycaps.

The result is a keyboard that sounds more solid out of the box than many gaming boards.

Stabilizers and Sound

One of the few persistent complaints about Wooting keyboards remains the stabilizers.

While the TenZ edition includes a small foam mod inside the spacebar, the spacebar stabilizer can still produce some rattle.

It’s not terrible.

But at this price point, enthusiasts expect stabilizers to be perfect out of the box.

The frustrating part is that the other stabilizers on the keyboard are actually very good.

It’s just the spacebar that occasionally reminds you it could be better.

Gaming Performance

This is where the keyboard truly shines.

Combined with the TenZ switches, rapid trigger, and Wooting’s software, the keyboard feels extremely responsive in games.

Movement feels instantaneous.

Directional strafing feels tighter.

And once you get used to the sensitivity, it’s very difficult to go back to traditional mechanical switches.

For competitive gaming, this keyboard is easily one of the best options available.

Pros

Industry-leading Hall Effect technology
Rapid Trigger provides measurable gaming advantage
Custom TenZ switches feel extremely fast
Excellent software with Wootility
Strong out-of-box sound profile

Cons

Spacebar stabilizer still needs improvement
Case RGB implementation feels underutilized
Switch sensitivity can cause accidental presses while typing
Not ideal for productivity-focused users

Final Thoughts

The Wooting 80HE TenZ Edition is not trying to be the perfect keyboard for everyone.

It’s trying to be the perfect keyboard for competitive gaming.

And in that role, it succeeds.

But if you are someone who enjoys modding keyboards, typing all day, or customizing switch feel, the standard Wooting 80HE might actually be the more flexible choice.

The TenZ edition is focused.

Aggressive.

And unapologetically built for performance.
